適用:密度板,壓克力,PVC等3D雕刻和倒角,
雙刃設(shè)計,同心度非常好,刃口鋒利,底部不留屑。
|
|||||||
Good for: 3D engraving and chamfer angle on Acrylic,
MDF, and PVC. Excellent concentricity, sharp cutting edge,
non-stick in the bottom
|
|||||||
訂購產(chǎn)品須在編號前加材質(zhì)編號:N ,A
|
Material: SOLID CARBIDE,硬質(zhì)合金
(鎢鋼)
|
||||||
Products must be ordered by adding the
Materials Code Number like N, A .
|
參考價格:人民幣 PRICE(RMB)
|
||||||
編號
|
刃徑
|
全角
|
刀尖
|
柄徑
|
N系列
|
A系列
|
圖片
|

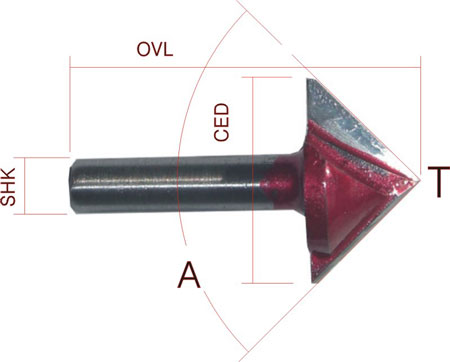

PART NO
|
CED
|
A
|
TIP
|
SHK
|
N series
|
A series
|
PIC
|
2V61045
|
10
|
45*
|
0.2
|
6
|
***
|
***
|
|
2V61060
|
10
|
60*
|
0.2
|
6
|
***
|
***
|
|
2V61090
|
10
|
90*
|
0.2
|
6
|
***
|
***
|
|
2V610120
|
10
|
120*
|
0.2
|
6
|
***
|
***
|
|
2V610150
|
10
|
150*
|
0.2
|
6
|
***
|
***
|
|
2V61660
|
16
|
60*
|
0.2
|
6
|
***
|
***
|
|
2V61690
|
16
|
90*
|
0.2
|
6
|
***
|
***
|
|
2V616120
|
16
|
120*
|
0.2
|
6
|
***
|
***
|
|
2V616150
|
16
|
150*
|
0.2
|
6
|
***
|
***
|
|
2V62260
|
22
|
60*
|
0.2
|
6
|
***
|
***
|
|
2V62290
|
22
|
90*
|
0.2
|
6
|
***
|
***
|
|
2V622120
|
22
|
120*
|
0.2
|
6
|
***
|
***
|
|
2V622135
|
22
|
135*
|
0.2
|
6
|
***
|
***
|
|
2V622150
|
22
|
150*
|
0.2
|
6
|
***
|
***
|
|
2V63260
|
32
|
60*
|
0.2
|
6
|
***
|
***
|
|
2V63290
|
32
|
90*
|
0.2
|
6
|
***
|
***
|
|
2V632110
|
32
|
110*
|
0.2
|
6
|
***
|
***
|
|
2V632120
|
32
|
120*
|
0.2
|
6
|
***
|
***
|
|
2V632130
|
32
|
130*
|
0.2
|
6
|
***
|
***
|
|
2V632135
|
32
|
135*
|
0.2
|
6
|
***
|
***
|
|
2V632140
|
32
|
140*
|
0.2
|
6
|
***
|
***
|
|
2V632150
|
32
|
150*
|
0.2
|
6
|
***
|
***
|
|
2V12.2290
|
22
|
90*
|
0.2
|
12.7
|
***
|
***
|
|
2V12.22120
|
22
|
120*
|
0.2
|
12.7
|
***
|
***
|
|
2V12.22150
|
22
|
150*
|
0.2
|
12.7
|
***
|
***
|
|
2V12.3290
|
32
|
90*
|
0.2
|
12.7
|
***
|
***
|
|
2V12.32120
|
32
|
120*
|
0.2
|
12.7
|
***
|
***
|
|
2V12.32150
|
32
|
150*
|
0.2
|
12.7
|
***
|
***
|
|
2V12.4590
|
45
|
90*
|
0.2
|
12.7
|
***
|
***
|
|
2V12.45120
|
45
|
120*
|
0.2
|
12.7
|
***
|
***
|
|
2V202290
|
22
|
90*
|
0.2
|
20
|
***
|
***
|
|
2V2022120
|
22
|
120*
|
0.2
|
20
|
***
|
***
|
|
2V203290
|
32
|
90*
|
0.2
|
20
|
***
|
***
|
|
2V2032120
|
32
|
120*
|
0.2
|
20
|
***
|
***
|
|
2V204590
|
45
|
90*
|
0.2
|
20
|
***
|
***
|
|
2V2045120
|
45
|
120*
|
0.2
|
20
|
***
|
***
|
